Air Conditioning Specialists
Industrial Fans & Blowers
Industrial fans and blowers — external rotor axial fans for condensing units, chillers, refrigeration and ventilation applications.

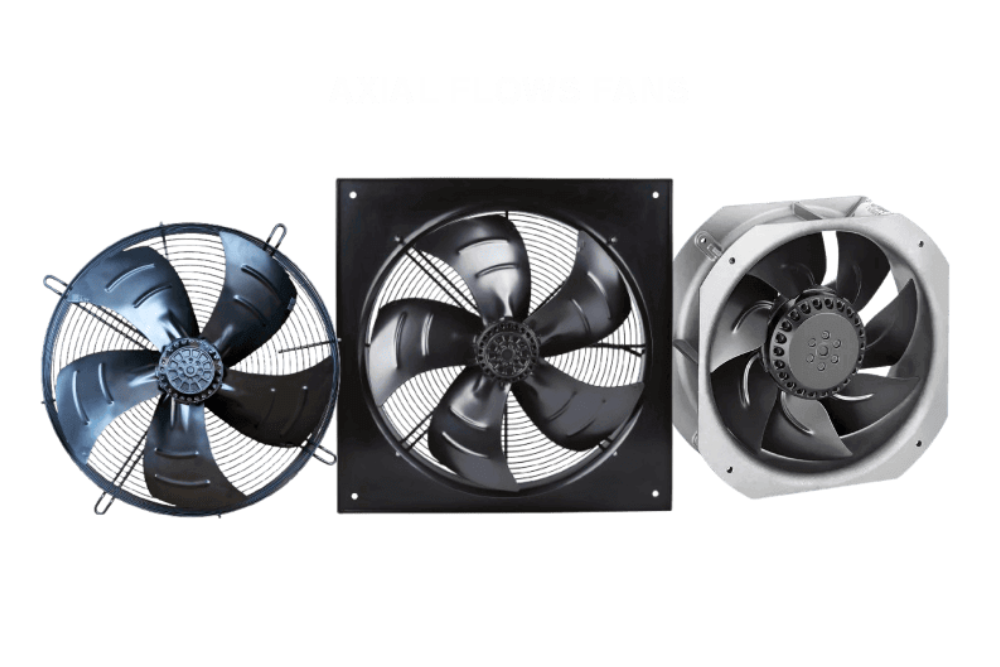

AF200-S1
Ø200 mm external rotor axial fan, available in single phase and three phase versions.
- Fan / Frame: Ø200 / Ø220
- PCD: Ø260
- Depth: 65 mm
- Mounting hole: 7 mm (inside dim.)
Specifications
| Model | Volt (V) | Frequency (Hz) | Watt (W) | Current (A) | Speed (RPM) | Capacitor (µF) | Air Vol. (m³/hr) | Air Vol. (CFM) | Noise (dBA) | Nt. Wt. (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| AF200-2E-S1 | 230 V (1~) | 50 | 70 | 0.30 | 2400 ±200 | 2.00 | 1000 | 589 | 58 | 2.0 |
| 60 | 78 | 0.35 | 2600 ±200 | 2.00 | 1100 | 647 | 61 | |||
| AF200-2D-S1 | 415 V (3~) | 50 | 78 | 0.18 | 2400 ±200 | — | 1000 | 589 | 58 | 2.0 |
| 60 | 78 | 0.15 | 2600 ±200 | — | 1100 | 647 | 61 |
Voltage, wattage and current values are ±10%. All dimensions are in mm.
Mechanical Characteristics
| Blade & Grill | Steel Powder Coated |
| Type Of Application | S1 Continuous Duty |
| Ingress Protection Rating | IP-44 |
| Insulation Class | “F” |
| Bearing | Maintenance Free Ball Bearing |
| Permissible Ambient Temperature | -30° To +60°C |
| Manufacturing Standards | EN-60335-1 |
| Testing Standards | IS-3588-1987 |
| Balancing Grade | IS-1940-1-2003, Grade 6.3 |
| Noise | A-weighted overall sound power level, distance of 1 meter |
| Product Life | 30,000 hours (At 40°C) |
AF250-S2
Ø250 mm external rotor axial fan, offered in 2-pole and 4-pole single phase versions.
- Fan / Frame: Ø250 / Ø275
- PCD: Ø320
- Depth: 80 mm
- Mounting hole: 7 mm (inside dim.)
Specifications
| Model | Volt (V) | Frequency (Hz) | Watt (W) | Current (A) | Speed (RPM) | Capacitor (µF) | Air Vol. (m³/hr) | Air Vol. (CFM) | Noise (dBA) | Nt. Wt. (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| AF250-2E-S2 | 230 V (1~) | 50 | 115 | 0.50 | 2600 ±200 | 3.15 | 1750 | 1030 | 66 | 2.3 |
| 60 | 140 | 0.60 | 2900 ±200 | 3.15 | 1900 | 1118 | 67 | |||
| AF250-4E-S2 | 230 V (1~) | 50 | 60 | 0.32 | 1450 ±100 | 2.00 | 950 | 559 | 60 | 2.3 |
| 60 | 58 | 0.26 | 1700 ±100 | 2.00 | 1100 | 647 | 61 |
Voltage, wattage and current values are ±10%. All dimensions are in mm.
Mechanical Characteristics
| Blade & Grill | Steel Powder Coated |
| Type Of Application | S1 Continuous Duty |
| Ingress Protection Rating | IP-44 |
| Insulation Class | “F” |
| Bearing | Maintenance Free Ball Bearing |
| Permissible Ambient Temperature | -30° To +60°C |
| Manufacturing Standards | EN-60335-1 |
| Testing Standards | IS-3588-1987 |
| Balancing Grade | IS-1940-1-2003, Grade 6.3 |
| Noise | A-weighted overall sound power level, distance of 1 meter |
| Product Life | 30,000 hours (At 40°C) |
AF300-S3
Ø300 mm external rotor axial fan, offered in 2-pole and 4-pole single phase versions.
- Fan / Frame: Ø300 / Ø320
- PCD: Ø360
- Depth: 110 (motor 90) mm
- Mounting hole: 8 mm (inside dim.)
Specifications
| Model | Volt (V) | Frequency (Hz) | Watt (W) | Current (A) | Speed (RPM) | Capacitor (µF) | Air Vol. (m³/hr) | Air Vol. (CFM) | Noise (dBA) | Nt. Wt. (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| AF300-2E-S3 | 230 V (1~) | 50 | 140 | 0.60 | 2100 ±200 | 4.0 | 2300 | 1354 | 66 | 3.7 |
| AF300-4E-S3 | 230 V (1~) | 50 | 90 | 0.37 | 1400 ±100 | 3.15 | 1800 | 1059 | 60 | 3.5 |
| 60 | 120 | 0.50 | 1600 ±100 | 3.15 | 2100 | 1236 | 61 |
Voltage, wattage and current values are ±10%. All dimensions are in mm.
Mechanical Characteristics
| Blade & Grill | Steel Powder Coated |
| Type Of Application | S1 Continuous Duty |
| Ingress Protection Rating | IP-44 |
| Insulation Class | “F” |
| Bearing | Maintenance Free Ball Bearing |
| Permissible Ambient Temperature | -30° To +60°C |
| Manufacturing Standards | EN-60335-1 |
| Testing Standards | IS-3588-1987 |
| Balancing Grade | IS-1940-1-2003, Grade 6.3 |
| Noise | A-weighted overall sound power level, distance of 1 meter |
| Product Life | 30,000 hours (At 40°C) |
AF350-K3
Ø350 mm external rotor axial fan with thermal overload protection, in single phase and three phase versions.
- Fan / Frame: Ø350 / Ø370
- PCD: Ø420
- Depth: 130 (motor 90) mm
- Mounting hole: 10 mm (inside dim.)
Specifications
| Model | Volt (V) | Frequency (Hz) | Watt (W) | Current (A) | Speed (RPM) | Capacitor (µF) | Air Vol. (m³/hr) | Air Vol. (CFM) | Noise (dBA) | Nt. Wt. (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| AF350-4D-K3 | 415 V (3~) | 50 | 140 | 0.48 | 1400 ±100 | — | 2500 | 1472 | 58 | 4.8 |
| 60 | 170 | 0.38 | 1600 ±100 | — | 2700 | 1589 | 60 | |||
| AF350-4E-K3 | 230 V (1~) | 50 | 140 | 0.63 | 1400 ±100 | 4.0 | 2500 | 1472 | 58 | 4.8 |
| 60 | 170 | 0.73 | 1650 ±100 | 4.0 | 2700 | 1589 | 60 |
Voltage, wattage and current values are ±10%. All dimensions are in mm.
Mechanical Characteristics
| Blade & Grill | Steel Powder Coated |
| Type Of Application | S1 Continuous Duty |
| Ingress Protection Rating | IP-54 |
| Motor Protected | Thermal Overload Protector At 140°C |
| Insulation Class | “F” |
| Bearing | Maintenance Free Ball Bearing |
| Permissible Ambient Temperature | -30° To +60°C |
| Manufacturing Standards | EN-60335-1 |
| Testing Standards | IS-3588-1987 |
| Balancing Grade | IS-1940-1-2003, Grade 6.3 |
| Noise | A-weighted overall sound power level, distance of 1 meter |
| Product Life | 30,000 hours (At 40°C) |
AF400-K4
Ø400 mm external rotor axial fan with thermal overload protection.
- Fan / Frame: Ø400 / Ø420
- PCD: Ø470
- Depth: 140 (motor 90) mm
- Mounting hole: 10 mm (inside dim.)
Specifications
| Model | Volt (V) | Frequency (Hz) | Watt (W) | Current (A) | Speed (RPM) | Capacitor (µF) | Air Vol. (m³/hr) | Air Vol. (CFM) | Noise (dBA) | Nt. Wt. (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| AF400-4E-K4 | 230 V (1~) | 50 | 180 | 0.75 | 1400 ±100 | 6.0 | 4150 | 2443 | 64 | 5.6 |
| 60 | 220 | 0.95 | 1600 ±100 | 6.0 | 4700 | 2766 | 67 |
Voltage, wattage and current values are ±10%. All dimensions are in mm.
Mechanical Characteristics
| Blade & Grill | Steel Powder Coated |
| Type Of Application | S1 Continuous Duty |
| Ingress Protection Rating | IP-54 |
| Motor Protected | Thermal Overload Protector At 140°C |
| Insulation Class | “F” |
| Bearing | Maintenance Free Ball Bearing |
| Permissible Ambient Temperature | -30° To +60°C |
| Manufacturing Standards | EN-60335-1 |
| Testing Standards | IS-3588-1987 |
| Balancing Grade | IS-1940-1-2003, Grade 6.3 |
| Noise | A-weighted overall sound power level, distance of 1 meter |
| Product Life | 30,000 hours (At 40°C) |
AF450-K5
Ø450 mm external rotor axial fan on the K5 motor frame, in single phase and three phase versions.
- Fan / Frame: Ø450 / Ø470
- PCD: Ø520
- Depth: 160 (motor 90) mm
- Mounting hole: 10 mm (inside dim.)
Specifications
| Model | Volt (V) | Frequency (Hz) | Watt (W) | Current (A) | Speed (RPM) | Capacitor (µF) | Air Vol. (m³/hr) | Air Vol. (CFM) | Noise (dBA) | Nt. Wt. (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| AF450-4D-K5 | 415 V (3~) | 50 | 250 | 0.60 | 1400 ±100 | — | 5500 | 3237 | 65 | 6.6 |
| 60 | 310 | 0.67 | 1500 ±100 | — | 5700 | 3355 | 67 | |||
| AF450-4E-K5 | 230 V (1~) | 50 | 250 | 1.02 | 1400 ±100 | 8.0 | 5500 | 3237 | 65 | 6.6 |
| 60 | 350 | 1.55 | 1500 ±100 | 8.0 | 5700 | 3355 | 67 |
Voltage, wattage and current values are ±10%. All dimensions are in mm.
Mechanical Characteristics
| Blade & Grill | Steel Powder Coated |
| Type Of Application | S1 Continuous Duty |
| Ingress Protection Rating | IP-54 |
| Motor Protected | Thermal Overload Protector At 140°C |
| Insulation Class | “F” |
| Bearing | Maintenance Free Ball Bearing |
| Permissible Ambient Temperature | -30° To +60°C |
| Manufacturing Standards | EN-60335-1 |
| Testing Standards | IS-3588-1987 |
| Balancing Grade | IS-1940-1-2003, Grade 6.3 |
| Noise | A-weighted overall sound power level, distance of 1 meter |
| Product Life | 30,000 hours (At 40°C) |
AF450-M3
Ø450 mm external rotor axial fan on the larger M3 motor frame for higher airflow duty.
- Fan / Frame: Ø450 / Ø470
- PCD: Ø520
- Depth: 143 (motor 90), hub Ø138 mm
- Mounting hole: 10 mm (inside dim.)
Specifications
| Model | Volt (V) | Frequency (Hz) | Watt (W) | Current (A) | Speed (RPM) | Capacitor (µF) | Air Vol. (m³/hr) | Air Vol. (CFM) | Noise (dBA) | Nt. Wt. (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| AF450-4D-M3 | 415 V (3~) | 50 | 380 | 1.23 | 1350 ±100 | — | 5800 | 3414 | 71 | 7.9 |
| AF450-4E-M3 | 230 V (1~) | 50 | 380 | 1.60 | 1350 ±100 | 10.00 | 5800 | 3414 | 71 | 7.9 |
Voltage, wattage and current values are ±10%. All dimensions are in mm.
Mechanical Characteristics
| Blade & Grill | Steel Powder Coated |
| Type Of Application | S1 Continuous Duty |
| Ingress Protection Rating | IP-54 |
| Motor Protected | Thermal Overload Protector At 140°C |
| Insulation Class | “F” |
| Bearing | Maintenance Free Ball Bearing |
| Permissible Ambient Temperature | -30° To +60°C |
| Manufacturing Standards | EN-60335-1 |
| Testing Standards | IS-3588-1987 |
| Balancing Grade | IS-1940-1-2003, Grade 6.3 |
| Noise | A-weighted overall sound power level, distance of 1 meter |
| Product Life | 30,000 hours (At 40°C) |
AF500-M3
Ø500 mm external rotor axial fan on the M3 motor frame, in single phase and three phase versions.
- Fan / Frame: Ø500 / Ø520
- PCD: Ø570
- Depth: 159 (motor 90), hub Ø138 mm
- Mounting hole: 10.5 mm (inside dim.)
Specifications
| Model | Volt (V) | Frequency (Hz) | Watt (W) | Current (A) | Speed (RPM) | Capacitor (µF) | Air Vol. (m³/hr) | Air Vol. (CFM) | Noise (dBA) | Nt. Wt. (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| AF500-4D-M3 | 415 V (3~) | 50 | 385 | 0.75 | 1350 ±100 | — | 6800 | 4002 | 70 | 8.8 |
| 60 | 480 | 0.82 | 1450 ±100 | — | 7300 | 4297 | 72 | |||
| AF500-4E-M3 | 230 V (1~) | 50 | 390 | 1.75 | 1350 ±100 | 10.0 | 6800 | 4002 | 70 | 8.8 |
| 60 | 530 | 2.40 | 1400 ±100 | 10.0 | 7300 | 4297 | 72 |
Voltage, wattage and current values are ±10%. All dimensions are in mm.
Mechanical Characteristics
| Blade & Grill | Steel Powder Coated |
| Type Of Application | S1 Continuous Duty |
| Ingress Protection Rating | IP-54 |
| Motor Protected | Thermal Overload Protector At 140°C |
| Insulation Class | “F” |
| Bearing | Maintenance Free Ball Bearing |
| Permissible Ambient Temperature | -30° To +60°C |
| Manufacturing Standards | EN-60335-1 |
| Testing Standards | IS-3588-1987 |
| Balancing Grade | IS-1940-1-2003, Grade 6.3 |
| Noise | A-weighted overall sound power level, distance of 1 meter |
| Product Life | 30,000 hours (At 40°C) |
AF550-M5
Ø550 mm external rotor axial fan on the M5 motor frame, in single phase and three phase versions.
- Fan / Frame: Ø550 / Ø570
- PCD: Ø620
- Depth: 174 (motor 100), hub Ø138 mm
- Mounting hole: 10.5 mm (inside dim.)
Specifications
| Model | Volt (V) | Frequency (Hz) | Watt (W) | Current (A) | Speed (RPM) | Capacitor (µF) | Air Vol. (m³/hr) | Air Vol. (CFM) | Noise (dBA) | Nt. Wt. (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| AF550-4D-M5 | 415 V (3~) | 50 | 525 | 1.15 | 1400 ±100 | — | 9000 | 5297 | 72 | 11.4 |
| 60 | 750 | 1.30 | 1500 ±100 | — | 9800 | 5768 | 75 | |||
| AF550-4E-M5 | 230 V (1~) | 50 | 560 | 2.45 | 1300 ±100 | 12.50 | 9000 | 5297 | 72 | 11.4 |
| 60 | 510 | 1.18 | 1350 ±100 | 12.50 | 9700 | 5709 | 74 |
Voltage, wattage and current values are ±10%. All dimensions are in mm.
Mechanical Characteristics
| Blade & Grill | Steel Powder Coated |
| Type Of Application | S1 Continuous Duty |
| Ingress Protection Rating | IP-54 |
| Motor Protected | Thermal Overload Protector At 140°C |
| Insulation Class | “F” |
| Bearing | Maintenance Free Ball Bearing |
| Permissible Ambient Temperature | -30° To +60°C |
| Manufacturing Standards | EN-60335-1 |
| Testing Standards | IS-3588-1987 |
| Balancing Grade | IS-1940-1-2003, Grade 6.3 |
| Noise | A-weighted overall sound power level, distance of 1 meter |
| Product Life | 30,000 hours (At 40°C) |
AF600-M7
Ø600 mm external rotor axial fan on the M7 motor frame, in single phase and three phase versions.
- Fan / Frame: Ø600 / Ø620
- PCD: Ø680
- Depth: 181 (motor 100), hub Ø138 mm
- Mounting hole: 10.5 mm (inside dim.)
Specifications
| Model | Volt (V) | Frequency (Hz) | Watt (W) | Current (A) | Speed (RPM) | Capacitor (µF) | Air Vol. (m³/hr) | Air Vol. (CFM) | Noise (dBA) | Nt. Wt. (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| AF600-4D-M7 | 415 V (3~) | 50 | 780 | 1.45 | 1350 ±100 | — | 11500 | 6769 | 76 | 14.8 |
| 60 | 1290 | 1.97 | 1450 ±100 | — | 12000 | 7063 | 78 | |||
| AF600-4E-M7 | 230 V (1~) | 50 | 710 | 3.00 | 1150 ±100 | 16.00 | 11000 | 6475 | 76 | 14.8 |
Voltage, wattage and current values are ±10%. All dimensions are in mm.
Mechanical Characteristics
| Blade & Grill | Steel Powder Coated |
| Type Of Application | S1 Continuous Duty |
| Ingress Protection Rating | IP-54 |
| Motor Protected | Thermal Overload Protector At 140°C |
| Insulation Class | “F” |
| Bearing | Maintenance Free Ball Bearing |
| Permissible Ambient Temperature | -30° To +60°C |
| Manufacturing Standards | EN-60335-1 |
| Testing Standards | IS-3588-1987 |
| Balancing Grade | IS-1940-1-2003, Grade 6.3 |
| Noise | A-weighted overall sound power level, distance of 1 meter |
| Product Life | 30,000 hours (At 40°C) |
AF630-M7
Ø630 mm external rotor axial fan on the M7 motor frame, three phase.
- Fan / Frame: Ø630 / Ø650
- PCD: Ø750
- Depth: 181 (motor 100), hub Ø138 mm
- Mounting hole: 10.5 mm (inside dim.)
Specifications
| Model | Volt (V) | Frequency (Hz) | Watt (W) | Current (A) | Speed (RPM) | Capacitor (µF) | Air Vol. (m³/hr) | Air Vol. (CFM) | Noise (dBA) | Nt. Wt. (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| AF630-4D-M7 | 415 V (3~) | 50 | 815 | 1.50 | 1350 ±100 | — | 13500 | 7946 | 78 | 15.5 |
| 60 | 1120 | 1.91 | 1450 ±100 | — | 14000 | 8240 | 80 |
Voltage, wattage and current values are ±10%. All dimensions are in mm.
Mechanical Characteristics
| Blade & Grill | Steel Powder Coated |
| Type Of Application | S1 Continuous Duty |
| Ingress Protection Rating | IP-54 |
| Motor Protected | Thermal Overload Protector At 140°C |
| Insulation Class | “F” |
| Bearing | Maintenance Free Ball Bearing |
| Permissible Ambient Temperature | -30° To +60°C |
| Manufacturing Standards | EN-60335-1 |
| Testing Standards | IS-3588-1987 |
| Balancing Grade | IS-1940-1-2003, Grade 6.3 |
| Noise | A-weighted overall sound power level, distance of 1 meter |
| Product Life | 30,000 hours (At 40°C) |
AF710-F7
Ø710 mm 6-pole axial fan, three phase, selectable delta or star connection.
- Fan / Frame: Ø703 / Ø780
- PCD: Ø845
- Depth: 251 (motor 172), hub Ø180 mm
- Mounting hole: 14 mm (inside dim.)
Specifications
| Model | Volt (V) | Frequency (Hz) | Watt (W) | Current (A) | Speed (RPM) | Capacitor (µF) | Air Vol. (m³/hr) | Air Vol. (CFM) | Noise (dBA) | Nt. Wt. (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| AF710-6D-F7 (Δ Delta) | 415 V (3~) | 50 | 1150 | 1.80 | 900 ±100 | — | 16000 | 9418 | 76 | 27.0 |
| AF710-6D-F7 (Y Star) | 415 V (3~) | 50 | 750 | 1.20 | 680 ±100 | — | 13000 | 7652 | 65 | 27.0 |
Voltage, wattage and current values are ±10%. All dimensions are in mm.
Mechanical Characteristics
| Blade & Grill | Steel Powder Coated |
| Type Of Application | S1 Continuous Duty |
| Ingress Protection Rating | IP-54 |
| Motor Protected | Thermal Overload Protector |
| Insulation Class | “F” |
| Bearing | Maintenance Free Ball Bearing |
| Permissible Ambient Temperature | -30° To +60°C |
| Manufacturing Standards | EN-60335-1 |
| Testing Standards | IS-3588-1987 |
| Balancing Grade | IS-1940-1-2003, Grade 6.3 |
| Noise | A-weighted overall sound power level, distance of 1 meter |
| Product Life | 40,000 hours (At 40°C) |
AF800-F11
Ø800 mm 6-pole axial fan, three phase, selectable delta or star connection.
- Fan / Frame: Ø780 / Ø856
- PCD: Ø925
- Depth: 281 (motor 188), hub Ø180 mm
- Mounting hole: 14 mm (inside dim.)
Specifications
| Model | Volt (V) | Frequency (Hz) | Watt (W) | Current (A) | Speed (RPM) | Capacitor (µF) | Air Vol. (m³/hr) | Air Vol. (CFM) | Noise (dBA) | Nt. Wt. (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| AF800-6D-F11 (Δ Delta) | 415 V (3~) | 50 | 1550 | 3.00 | 920 ±100 | — | 21350 | 12567 | 80 | 36.0 |
| AF800-6D-F11 (Y Star) | 415 V (3~) | 50 | 1200 | 1.90 | 780 ±100 | — | 19100 | 11242 | 72 | 36.0 |
Voltage, wattage and current values are ±10%. All dimensions are in mm.
Mechanical Characteristics
| Blade & Grill | Steel Powder Coated |
| Type Of Application | S1 Continuous Duty |
| Ingress Protection Rating | IP-54 |
| Motor Protected | Thermal Overload Protector |
| Insulation Class | “F” |
| Bearing | Maintenance Free Ball Bearing |
| Permissible Ambient Temperature | -30° To +60°C |
| Manufacturing Standards | EN-60335-1 |
| Testing Standards | IS-3588-1987 |
| Balancing Grade | IS-1940-1-2003, Grade 6.3 |
| Noise | A-weighted overall sound power level, distance of 1 meter |
| Product Life | 40,000 hours (At 40°C) |
Our Brands
Offering products for air conditioning, installation and service support products.
