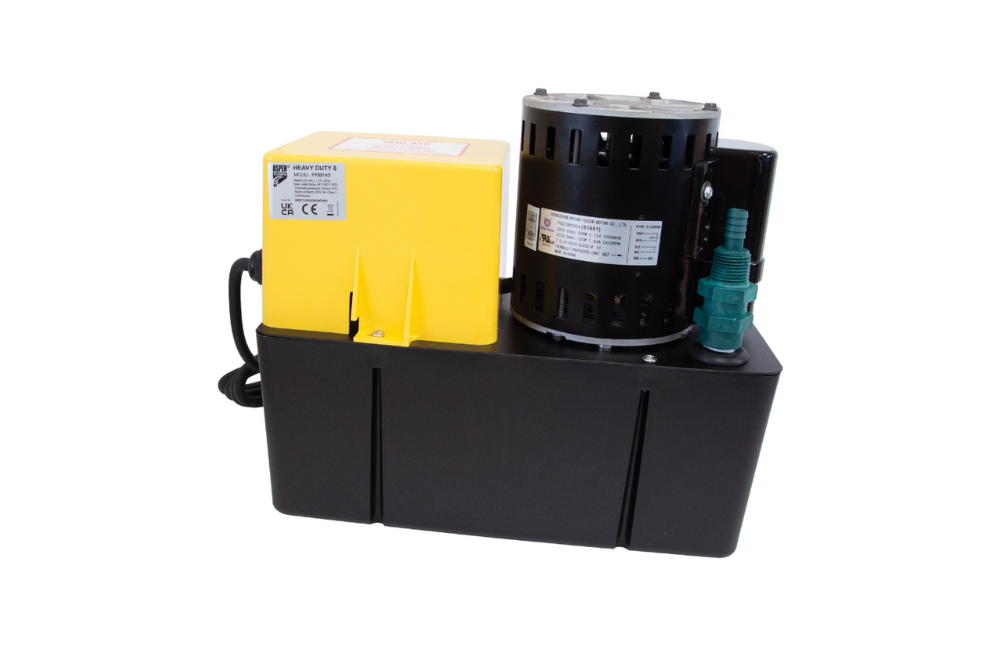

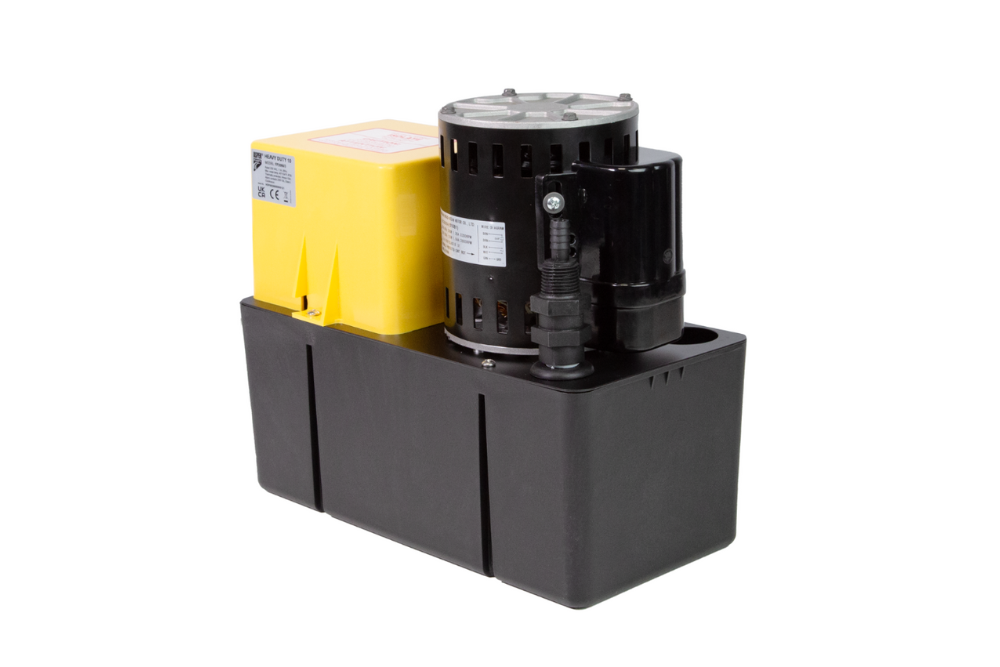

Heavy Duty 10 & 6
The Heavy Duty condensate removal pump is designed for high-demand HVAC systems, handling large condensate loads with quiet, reliable operation. Built to withstand the toughest commercial and industrial environments. These pumps are easy to install and combines power, reliability and durability.
Specifications
| Specification | Heavy Duty 6 | Heavy Duty 10 |
|---|---|---|
| Model | Heavy Duty 6 | Heavy Duty 10 |
| Voltage / Frequency | 230 V, 50 Hz | 230 V, 50 Hz |
| Maximum Flow | 900 L/h | 1070 L/h |
| Maximum Recommended Head | 6 m | 9 m |
| Tank Capacity | 4 L | 4 L |
| Noise Level | 60 dB(A) @ 1 m | 64 dB(A) @ 1 m |
| Power Supply | 230 VAC | 230 VAC |
| Current | 1.5 A | 0.38 A |
| Operating Frequency | 50 Hz | 50 Hz |
| Duty Rating | Non-continuous | Continuous |
| Appliance Class | Class I | Class I |
| Maximum Unit Output | 1200 kW / 4 million BTU/h* | 1460 kW / 4.9 million BTU/h* |
| Maximum Water Temperature | 40°C (104°F) | 40°C (104°F) |
| Inlet / Outlet | 2 × 40 mm inlet, 10 mm outlet | 2 × 40 mm inlet, 10 mm outlet |
| IP Protection Rating | IP20 | IP20 |
| Safety Switch | 3.0 A, Normally Closed | 3.0 A, Normally Closed |
* Maximum unit output is indicative and depends on installation conditions.
